Parts Remover for FB Stamping Press

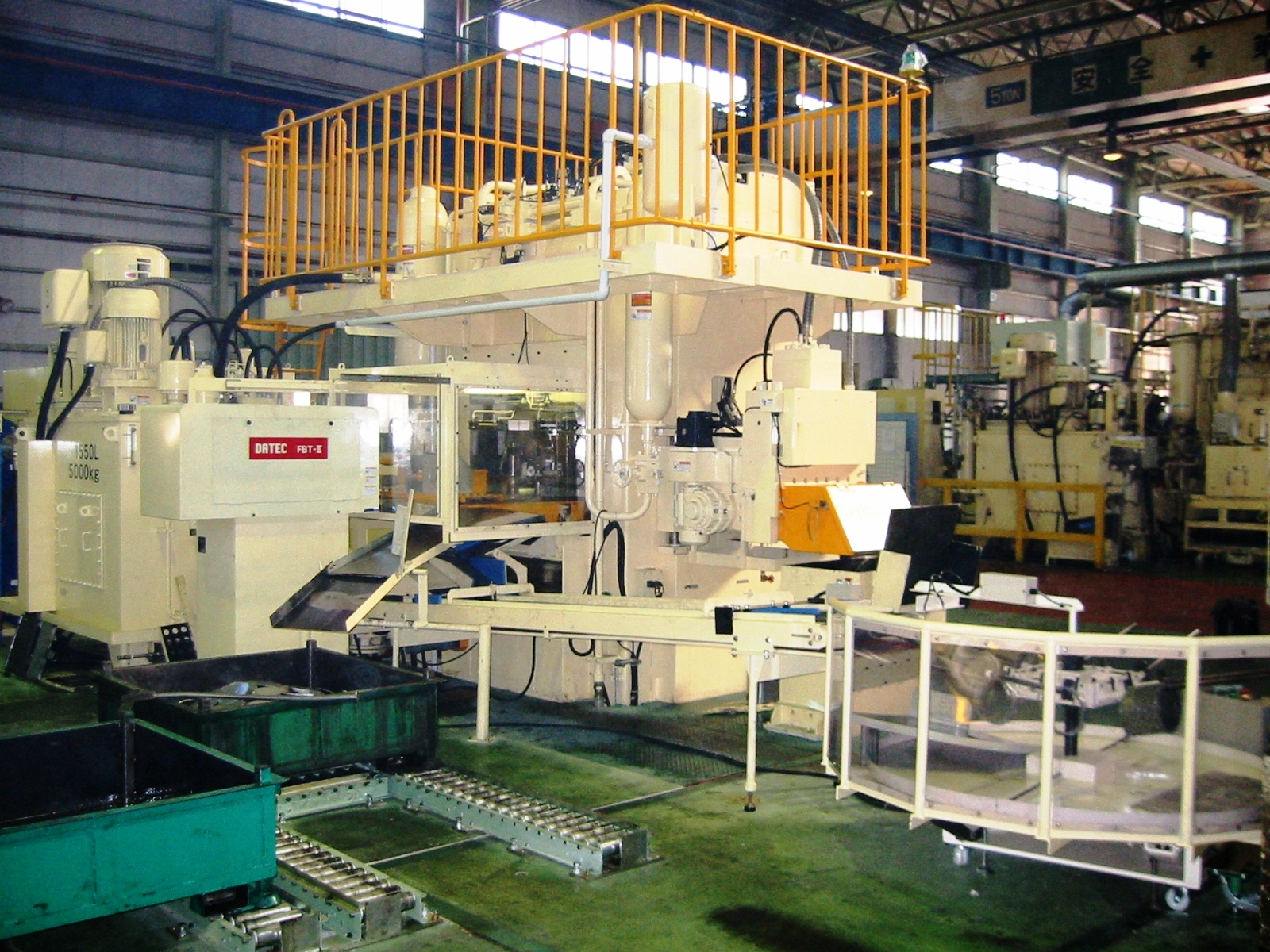

　　　　FBT Series:　Servo Driven Parts Remover for FB Stamping Press Machine
　　　　　　　　　　　Servo driven parts remover which can cater longer stroke and flexibility,
　　　　　　　　　　　　FBT Series is released in order to satisfy clients' needs and stamping field tendency that
　　　　　　　　　　　　larger sized FB stamping press are required.
Features：

You can choose the optimum stroke length and speed by die sets and work shapes.
You can unload each 2 sets of works and scraps separately and simultaneously.
You can save separation job by means of the item 2 mentioned above.
Productivity becomes double by means of the item 2 mentioned above.
You can unload the works and scraps firmly by means of mechanical motion.
Next process such as burring and polishing can be automated easily by means of constant facing and positioning.
Factory enviroment is improved by preventing from oil mist.
You can manage production scheme by touch type operation panel.

Main Specifications：

Model	ＦＢＴ－600
1. Thickness (mm)	3.0～6.0
2. Work Size (mm)	Max. 250 ｘ 250 （LR x FB）
	Min. 100 ｘ 100（LR x FB）
3. Work Weight (kgf)	Max. 0.8
4. Driver	Servomotor
5. Stroke Length (mm)	Max. 600
6. Unloading	Work and Scrap Each 2 sets Simultaneously
7. Operation Panel	Touch Type

Main Specifications：

Model	ＦＢＴ－300
1. Thickness (mm)	3.0～6.0
2. Work Size (mm)	Max. 150 ｘ 150 （LR x FB）
	Min. 70 ｘ 70（LR x FB）
3. Work Weight (kgf)	Max. 0.3
4. Driver	Cam Unit
5. Stroke Length (mm)	Max. 300
6. Unloading	Mechanical
7. Power	200/220V, 50/60Hz, 3Phases
